Regle Devtools

Regle offers a devtools extension for Vue Devtools to help you debug your validation tree.

Installation

To enable devtools, you need to install the Regle plugin in your app.

TIP

If you use the @regle/nuxt module, the devtools will be automatically enabled.

main.ts

import { createApp } from 'vue';
import App from './App.vue';
import { RegleVuePlugin } from '@regle/core';

const app = createApp(App);

app.use(RegleVuePlugin); // <--

app.mount('#app');

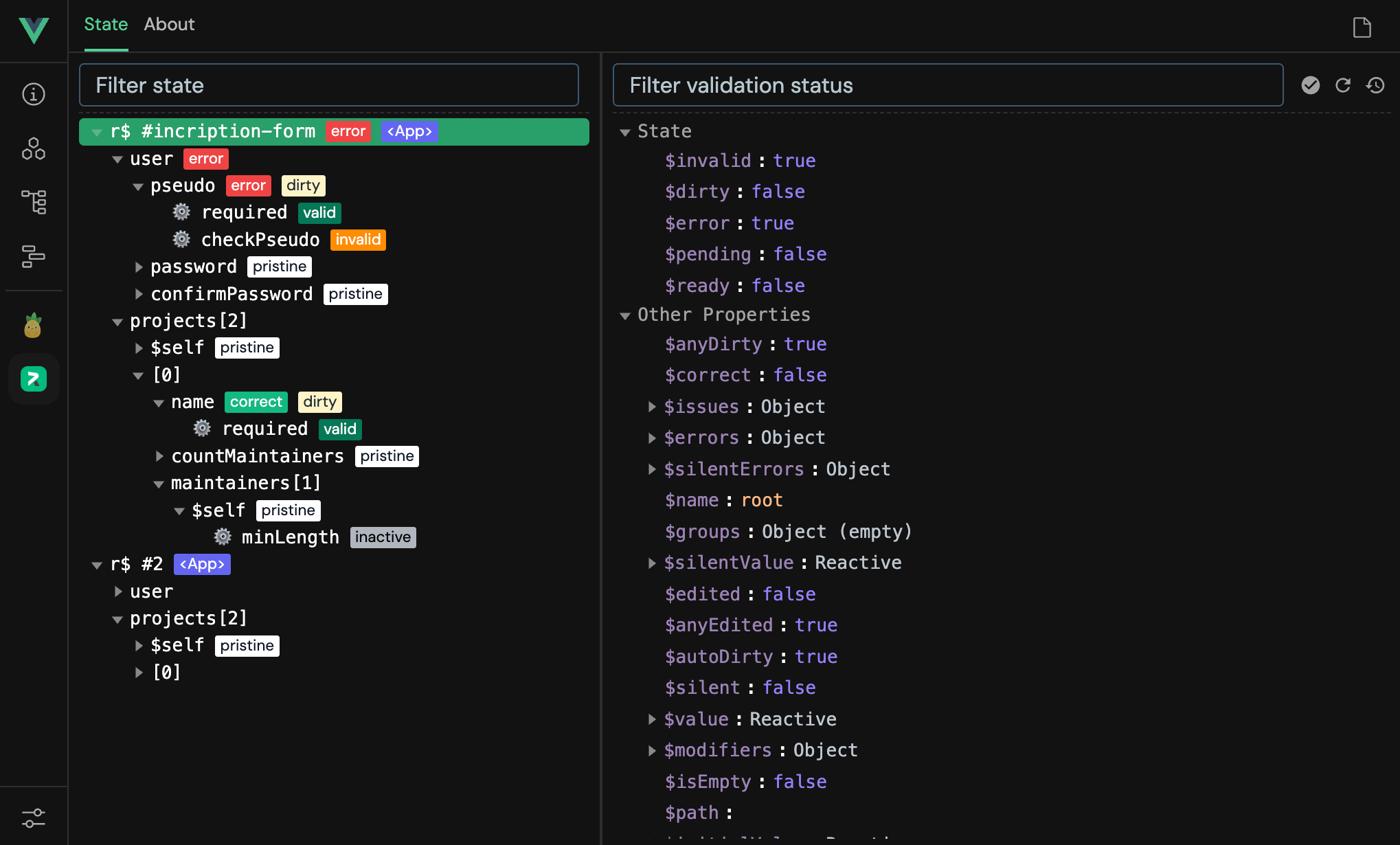

Usage

Regle devtools can inspect every variation of useRegle:

• useRegle
• useRules
• useRegleSchema
• useScopedRegle
• useScopedRegleSchema

You can inspect every nested properties and rules of the r$ instance.

WARNING

Rules details inspection is not available for useRegleSchema

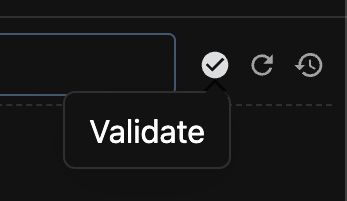

Actions

You can perform actions on the r$ instance by clicking on the actions buttons in the devtools.

• Validate: Validate the r$ instance (with $validate method)
• Reset validation state: Reset the validation state of the r$ instance (with $reset method)
• Restore to original state: Restore the r$ instance to the original state (with $reset method)

Providing custom r$ ids to devtools

By default, the devtools will use a generic name to display the r$ instance.

You can provide a custom name to the useRegle composable to display a more descriptive name in the devtools.

App.vue

import { useRegle } from '@regle/core';

const { r$ } = useRegle({ name: '' }, {
  name: { required }
}, {
  id: 'my-form'
});

Devtools demo

You can go in any of the Stablitz exemples and open the devtools by clicking on the "Open Devtools" button in the bottom middle of the page.

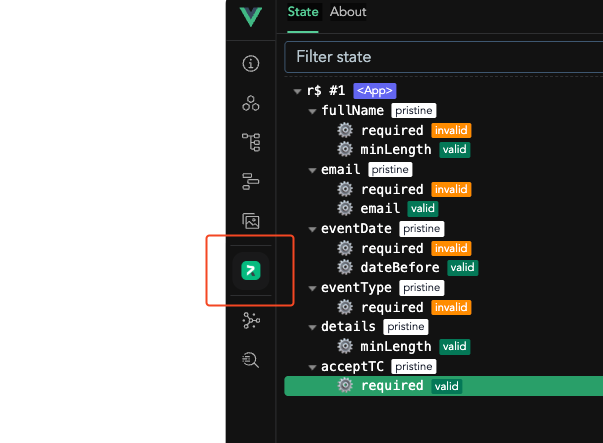

Vite Devtools Integration

Regle devtools also integrate cleanly with Vite when you're running your app in development mode.

You should see the Regle panel show up automatically in the Vite devtools if you've installed the plugin correctly.

You will see the Regle icon showing in the devtools. Just click on it!
